Product
SALINITY METER
SAL-200
- GENERAL INFORMATION
- SALINITY METER is designed to measure the salinity of the fresh water generator or boiler feed water
OPERATION PRINCIPLE & SYSTEM COMPOSITION
The controller remotely controls valves by electric, pneumatic and hydraulic line. SAL-200 is composed of a controller for monitoring the measured value, salinity sensors and solenoid vales.
The electrical signals from the salinity sensor are connected to the controller that is equipped with alarm lamps & buzzer, LCD indicator and keypad.Main function – F.P.T and bosun store discharge, Valve open/close indication, Direct/reverse operation, Another panel available.
TECHNICAL SPECIFICATION
- SUBJECT
- MEASURING RANGE
- ACCURACY
- ALARM CONTACT
- POWER
- IP GRADE
- SENSOR TYPE
- TEMPERATURE
- VALUE
- 0~20ppm, 0~200ppm
- ±2.5%
- Dry contac
- AC 100~240V / 50~60Hz
- IP 54
- Electrode type
- 0~100°C

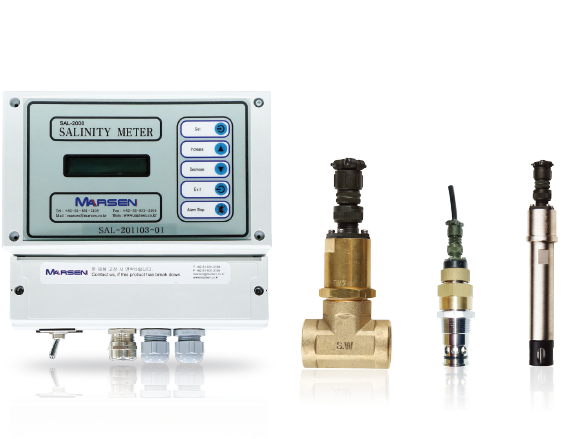

COMPONENTS / OUTLINE
