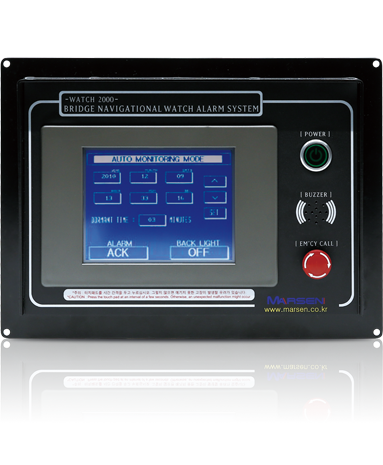

BRIDGE NAVIGATION WATCH ALARM SYSTEM
WATCH-2000
- GENERAL INFORMATION
- BRIDGE NAVIGATION WATCH ALARM SYSTEM is designed to monitor bridge activity and to alert the master of other qualified navigators if the bridge becomes unattended.
- This system conforms to the requirements of IMO resolution MCS. 128(75).
- DEAD MAN ALARM SYSTEM should be equipped inside the engine room and the pump room. This makes alarm for preventing the on-duty crews from napping or sleeping.
FEATURE & ADVANTAGE
- Possible to adjust the timer (password protected)
- Audivle and visual alarm indications
- Keys for sound off and acknowledge of alarms
- Selction of back-up navigator in duty
- Call back-up navigator
- Touch screen LCD
APPLICATION
All kinds of vessels (General cargo, PCC/RO.RO, Bulker/Tanker, LPG&LNG, Passenger ships irrespective of size)
OPERATION PRINCIPLE & SYSTEM COMPOSITION
WATCH-2000 is composed of a main controller, reset button boxes, motion sensor boxes and alarm boxes.
When the monitoring mode starts, the BNWAS enters into the “Dormant Period”. This period lies between 180 and 720 seconds (3~12minuts).
When the dormant time is expired without reset, the “Visual Indication” becomes active. If not reset within 15 seconds the internal buzzer turns on and the”1st Stage Alarm” becomes active.
A period of 15 to 60 seconds later, if not reset, the “2nd Stage Alarm” becomes active.
After a period of 90 to 180 seconds the “3rd Stage Alarm” becomes active.
TECHNICAL SPECIFICATION
| SUBJECT | VALUE | |
|---|---|---|
| MATERIAL | Cover | SS400 |
| Body | SS400 | |
| WEIGHT | 8kg | |
| POWER SUPPLY VOLTAGE | AC 110/220V 50/60Hz, DC 24V | |
| NUMBER OF INPUT | Reset | Adjustabl |
| Start(touch screen) | 1point | |
| NUMBER OF OUTPUT | Alarm Buzzer | 1point |
| Extension Buzzer | Adjustable | |
| Contact point signal(for the alarm Panel) | As per user's request | |
| Serial Port | Max. 3port | |
COMPONENTS / OUTLINE
