CARGO TANK MONITORING SYSTEM
CARGO-2000 (RADAR TYPE)
- GENERAL INFORMATION
- RADAR TYPE CARGO TANK MONITORING SYSTEM is basically designed to measure the liquid/solid level of cargo tanks from CCR.
- This system uses two types of radar sensors
- Radar beam type sensor using non-contact measurement with the objects and Guided wire type radar sensor protecting the radar impulse by guided wire.
- This system is designed according to IMO Regulation 59, SOLAS Regulation II 6.3.2.And ExxonMobil MESC 2010 Requirements.
FEATURE & ADVANTAGE
- High accuracy / Proper price
- Easy maintenance
- Alternative to pressure type & float type
- Non contact measurement
- Touch screen / Easy operation
- Measure for both liquid and solid
APPLICATION
All kinds of oil & chemical tankers
OPERATION PRINCIPLE & SYSTEM COMPOSITION
CARGO-2000 is composed of radar sensors for measuring the level, control panel for monitoring the measured value by touch LCD and barrier for ex-proof.

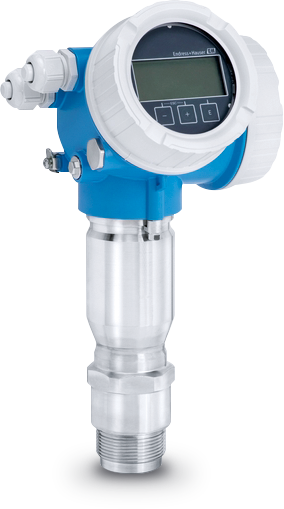

RADAR BEAM TYPE SENSOR uses FMCW(frequency modulated
continuous wave) electromagnetic signal to measure the distance
between
its antenna and the cargo tank’s content surface.
GUIDED WIRE TYPE RADAR SENSOR uses the TDR principle.
Radar impulses are emitted to the product surface and the sensor measures the time of the reflected impulses.
Then sensor can measure the level by calculating the time and the speed of impulses.
TECHNICAL SPECIFICATION
- ENSOR TYPE
- MEASURING RANGE
- ACCURACY
- POWER
- SIGNAL OUTPUT
- EX PROOF
- AMBIENT TEMPERATURE
- MATERIAL
- IP GRADE
- RADAR BEAM TYPE
- 0~40m
- ±2mm
- DC 20~30V, 2-WIRE
- 4~20mA with HART
- Ex ia IIC T6
- -40 ~ 80°C
- SUS316L
- IP 68 (with housing)
- GUIDED WIRE TYPE
- 0~40m (LIQUID)
- Up to 10mm
- DC24V, 2-WIRE
- 4~20 mA with HART
- Ex ia IIC T6
- -40 ~ 80°C
- SUS316L
- IP 68 (with housing)
