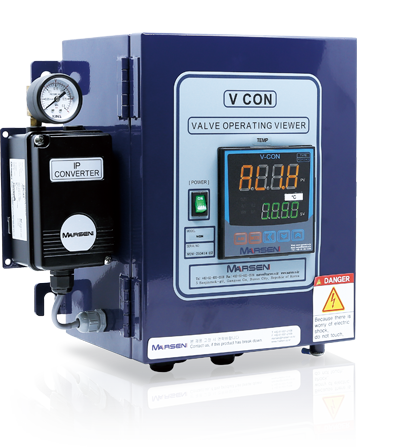

AUTOMATIC VALVE CONTROLLER
V-CON
- GENERAL INFORMATION
- AUTOMATIC VALVE CONTROLLER accepts various input signals caused by pressure, temperature, level and gas and it controls pneumatic, electric and hydraulic valves by sending open & close signals to valves.
FEATURE & ADVANTAGE
- possible to be applied in various indstrial facilities bacause it can ptocess various input signals,User can input the value by keypad
- I/P converter intrgrated unit-cost saving effect
AUTOMATIC VALVE CONTROLLER
V-CON
V-CON
OUTPUT
INPUT
OPERATION PRINCIPLE & SYSTEM COMPOSITION
V-CON is composed of CPU module, main control PCB, display module, push switch and buttons.
V-CON outputs valve OPEN & CLOSE signals by processing the data such as input signals and setting value.
TECHNICAL SPECIFICATION
- SUBJECT
- CONTROL FLUIDS
- CONTROL TARGET
- AMBIENT TEMP'
- WORKING VOLTAGE
- AIR PRESS
- COMPONENTS
- AUX. FUNCTION
- OUTPUT
- OPTION / ACCESSORY
- ETC
- VALUE
- Air, Water, Oil
- Temp, Press, Level, Flow, Gas, Inclino and etc
- 0~60°C
- AC110/220V 50/60Hz or DC24V
- 4-7kg/c㎡ (Max. 10 kg/c㎡)
- Controller, Sensor, Actuator
- Alarm, Valve Open/Close
- Contact, 4-20 mA (Option), RS-232 (Option), RS-485 (Option)
- Shelter, Digital Valve Positioner (VOV_420)
- Integration System, Actuator, Alarm
COMPONENTS / OUTLINE
