Product

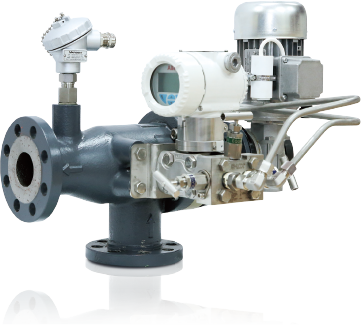

VISCOMETER
VIS-200
- GENERAL INFORMATION
- The measurement and control of heavy fuel viscosity are a known requirement within the marine and diesel engine industries.
- With the increasing pressure on operators to reduce costs, lower maintenance, viscometers are required to control their system.
- The viscometer is a major innovation in the measurement of all types of fuel oil that are supplied engines, turbines and marine burners.
- If it is correctly installed, the viscometer requires little or no maintenance and it is naturally tolerant of the harsh engine environments.
EATURE & ADVANTAGE
- Optimized burning efficiency
&
fuel consumption - Reduces engines
maintenance costs,
overhaul costs and pollution - Simultaneous on-line control
- Line pressure pulsations resistant
- Long term reproducibility
- Leak proof drive
by magnet coupling - No clogging capillary
- Designed for marine environments
- Quality assurance certificates from all major classification authorities
- Worldwide sales
and service network
APPLICATION
Viscosity control of intermediate and heavy fuel oils used for main and auxiliary engine in marine propulsion
Viscosity control in oil-fired power plants and other industrial applications using diesel engines on heavy or intermediate fuel oil
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | ||
|---|---|---|---|
| TYPE | PNEUMATIC | ELECTRIC | |
| SENSOR | 0~50cSt | VISCOSITY RANGE | |
| TEMPERATURE | Fuel oil max. 180°C / Ambient max. 60°C | ||
| MAX. FUEL FLOW RATE | 35m3/h | ||
| OUTPUT DIFFERENTIAL PRESSURE | approx. 0~0.5bar | ||
| ACCURACY | better than ±2% | ||
| VISCOSITY CONTROL STATION | INPUT SIGNAL | 0.2~1.0bar | 4~20mA |
| OUTPUT SIGNAL | 0.2~1.0bar | 4~20mA | |
| AIR SUPPLY | 1.4bar | - | |
| POWER | 110V/220V 50/60Hz | ||
COMPONENTS / OUTLINE
