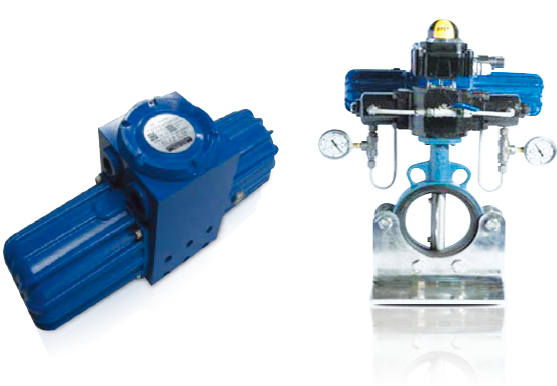

ELECTRO-HYDRAULIC POWER PACK
EHP-200
- GENERAL INFORMATION
- EHP is a compact hydraulic actuator controller that integrated electric motor, relief valve, check valve and hydraulic gear pump inside of housing.
- It can operate by small quantity working fluid and minimize the pressure loss at power transmission by increasing responsiveness and simplification of hydraulic piping.
- Because of the communication expansion of not only RS232 but also 422/485, it can operate multi-drop. Thus, user can control multiple electro-hydraulic power packs in a remote place in accordance with specified protocol.
- And user can monitor the actual operating situation in real time by feedback of EHP-200’s status controlled. User can control EHP-20 manually in local.
FEATURE & ADVANTAGE
- Outstanding decrease
of hydraulic piping - Easy to control the valve position and
trace the opening and closing degree - Removal of the existing heavy parts
- Easy installation and maintenance
TECHNICAL SPECIFICATION
- SUBJECT
- POWER
- MOTOR POWER
- VALVE POSITION RESOLUTION
- DELAY TIME ADJUSTMENT
- DUTY CYCLE (On-Off Duty)
- EX PROOF
- IP GRADE
- AMBIENT TEMPERATURE
- WORKING PRESSURE
- DIMENSION
- WEIGHT
- APPLICATION VALVE SIZE
- VALUE
- 220VAC, 60Hz / 24VDC
- 0.35kw
- Min. 1/100
- 0~15Sec. (1 Step 1 Sec)
- S2 : Max 30 Minutes / S4 : 50%
- Ex d IIC T4
- IP 68
- -20°C ~ 60°C
- 120bar
- 78 x 118 x 171 (mm)
- 10kg
- 40A ~ 900A
