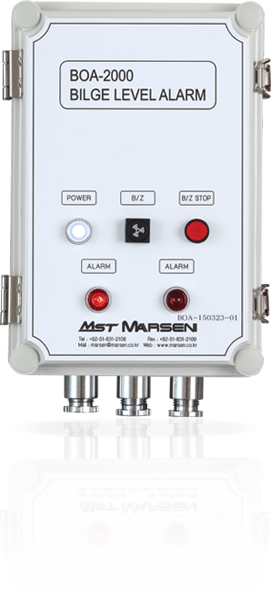

BILGE ALARM SYSTEM
BOA-2000
- GENERAL INFORMATION
- IMO MSC. 67 and OCIMF (Oil Companies International Marine Forum) regulate that all pump rooms of oil tankers for new shipbuilding and existing tankers should be equipped with high level alarm by audible and visual way.
OPERATION PRINCIPLE & SYSTEM COMPOSITION
BOA-2000 is composed of level switches and a controller.
It monitors the level of bilge well and activates audible and visual alarms by sending signal to controller when the level reaches at the setting value.
TECHNICAL SPECIFICATION
| SUBJECT | SPECIFICATION | |
|---|---|---|
| MAGNETIC FLOAT TYPE | CAPACITANCE TYPE | |
| POWER | Max. 250VAC, 0.5A | Max. 250VAC, 0.5 |
| CONNECTION | JIS 5K 50A | JIS 5K 50A |
| SET POINT | 120~5000mm | 120~5000mm |
| ACCURACY | ±5mm | ±5mm |
| MIN. SPECIFIC GRAVITY | 0.85 | 0.85 |
| IP GRADE | IP 56 | IP 56 |
| EX PROOF | Ex ia IIC T6 | Ex ia IIC T6 |
| SIGNAL | Dry contact | 4~20mA |
COMPONENTS / OUTLINE
