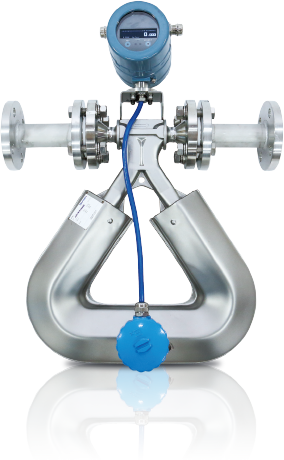

MASS FLOWMETER

CMF-200

  • GENERAL INFORMATION
  • Mass flow meter is a device that measures the mass of fluid traveling through a tube, in accor-dance with Coriolis Principle.
  • Coriolis Mass flowmeter can directly measure the fluid mass flow, and has great influence on the processing and measuring methods in the energy and chemical industries.
  • Compared with the traditional volume tric flow measurement.
pic
MASS FLOWMETER
CMF-200

INPUT

  • - Possible to measure the mass directly
  • - High accuracy and relibility
  • - Wide range of flowrate
  • - Can measure density, temperature
  • - Simple structure

TECHNICAL SPECIFICATION

  • SUBJECT
  • ACCURACY
  • AMBIENT TEMP
  • RELATIVE HUMIDITY
  • FLUID
  • FLUID TEMP
  • NOMINAL PRESS
  • SUPPLY VOLTAGE
  • OUTPUT
  • VALUE
  • Better than ±0.2% of Actual Flow (Range 1:10)
  • Part with LCD Display -30~+60°C
  • 5%~95%, Non Condensed
  • Liquid / Gas
  • -200~+200°C
  • 4Mpa // 25Mpa (High Pressure Model)
  • DC 24V, 5W
  • 4~20mA, Pulse 0~10KHz, RS-485
