Product
EX PROOF INSTRUMENT

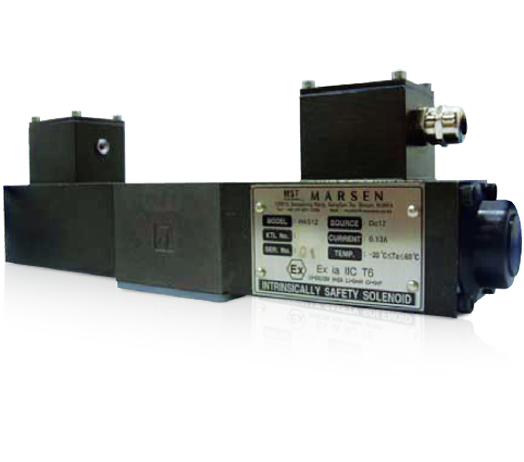

EX SOLENOID VALVE (MODEL : HAS12)
- GENERAL INFORMATION
- Ex Certification
- KR Certification for Explosion Proof Equipment
- Patent application
TECHNICAL SPECIFICATION
- SUBJECT
- RATED CURRENT
- RATED VOLTAGE
- SAFETY PARAMETER
- WMAX
- ABSORPTION FORCE
- DUTY RATING
- WORKING PRESSURE
- EX GRADE
- VALUE
- 0.12A
- DC 12V
- Ui = 13V, Ii = 2A, Li = 0mh, Ci = 0nF
- 4~5Watt
- MIN 0.5N, MAX 1.5N
- Continuous (100%)
- 160bar, Max. 250bar (busting)
- -20 ~ 50°C
Product
EX PROOF INSTRUMENT

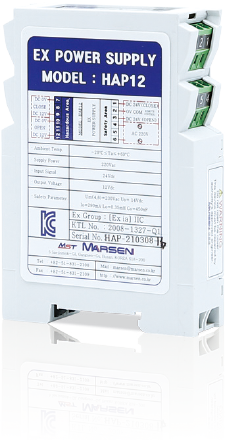

EX POWER SUPPLY (MODEL : HAP12)
TECHNICAL SPECIFICATION
| SUBJECT | VALUE |
|---|---|
| SUPPLY VOLTAGE | AC 220V |
| INPUT SIGNAL | DC 24V |
| OUTPUT VOLTAGE | DC 12V |
| STORAGE | -20°C ≤ Ta ≤ 60°C |
| EX PROOF | Ex ia IIC |
| INTRINSIC ASSOCIATED DEVICES PARAMETER | Po = 1W |
| Uo = DC 14V | |
| Io = 290mA | |
| Lo = 0.35mH | |
| Co = 450nF |
Product
EX PROOF INSTRUMENT

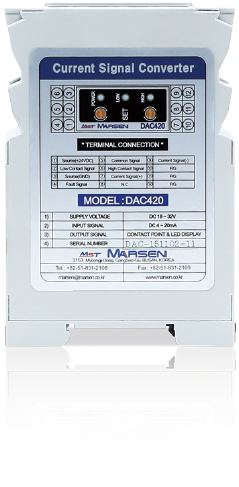

CURRENT SIGNAL CONVERTER (MODEL : DAC420)
TECHNICAL SPECIFICATION
- SUBJECT
- LOCATION OF UNIT
- HOUSING MATERIAL
- CONNECTION
- PRINT CIRCUIT BOARD
- SUPPLY VOLTAGE
- INPUT SIGNAL
- OUTPUT VOLTAGE
- STORAGE TEMPERATURE
- VALUE
- Safety Area
- Polycarbonate (Light Gray)
- Blade Pin Terminals
- FR-4
- DC24V
- DC 4-20mA
- Contact Point
- -20°C ≤ Ta ≤ 60°C
Product
EX PROOF INSTRUMENT

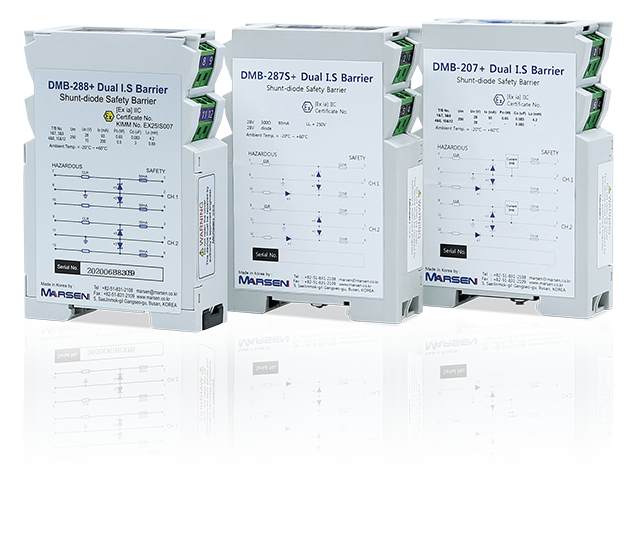

I.S BARRIER
TECHNICAL SPECIFICATION
| Model No. | Number of single channels interconnected within haz.area | Earth return uses | Max. permissible cable parameters | Match power | ||
|---|---|---|---|---|---|---|
| Group IIC | ||||||
| Capacitance (uF) |
Inductance (mH) |
L/R ratio uH/Q |
||||
| DMB-207+ | Both | Yes | 0.13 | 4.2 | 55 | 0.65 |
| DMB-207+ | Both | Yes | 0.13 | 4.2 | 55 | 0.65 |
| DMB-207+ | Both | Yes | 0.13 | 4.2 | 55 | 0.65 |
