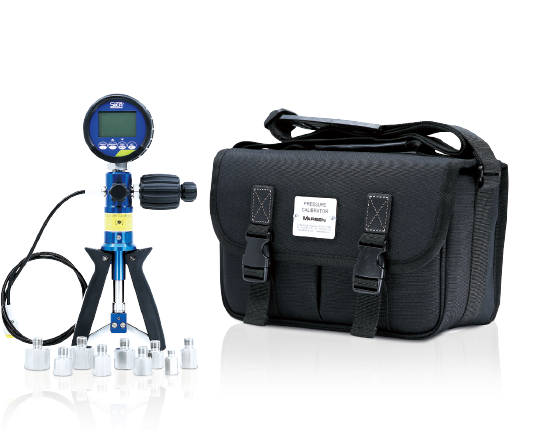

PRESSURE CALIBRATOR

MPC-200

  • GENERAL INFORMATION
  • PRESSURE CALIBRATOR is designed for measuring pressure of various kinds of pressure devices. Pressure is one of the most important factors for product quality.
pic

FEATURE & ADVANTAGE

  • Easy to use
  • Competitive price and safety

APPLICATION

Calibration for ship’s pressure

Research and development laboratories

Testing and inspecting departments in production area

TECHNICAL SPECIFICATION

PRESSURE PUMP
SUBJECT VALUE
PRESSURE MEDIA AIR
PRESSURE RANGE -1(-950mbar) ~ 40bar
PROCESS CONNECTION REFERENCE : G 3/8 A female, with quick connection
TEST DEVICE : G 1/4 A female, with hose (1.0 m) & cap nut
HOUSING 220 x 105 x 63mm
WEIGHT abt. 500g
INCLUDING ACCESSORIES seals, case
DIGITAL REFERENCE TEST GAUGE
SUBJECT VALUE
PRESSURE CONNECTION G1/4" male thread
DISPLAY Multifunction LCD, 30 x 30mm
HOUSING D = 70, L = 100, H = 30mm weight app. 130g IP 68
POWER SUPPLY 3 V-battery
ACCURACY ±0.5% of F.S
MEASURING RANGE -1~ (30) 40bar / 0.01
