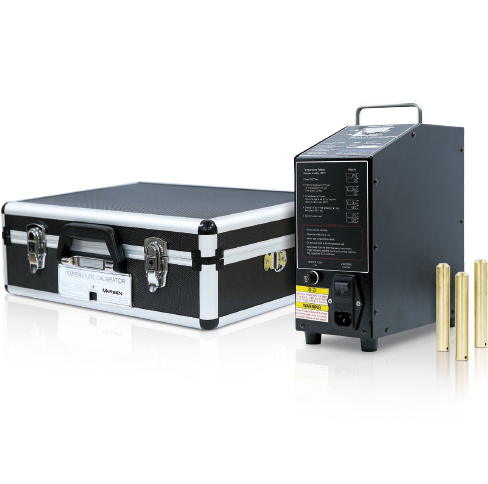

TEMPERATURE CALIBRATOR
MTC-200
- GENERAL INFORMATION
- When it comes to ensuring the reliable functioning of machines and industrial plants, exact temperature measurement or monitoring is necessary.
- Incorrectly displayed temperature readings increase the risk of failure.
- Temperature is one of the most important indicators for product quality.
Exact measurement ensures consistency in the quality of products
FEATURE & ADVANTAGE
- Optimized burning efficiency
&
fuel consumption - Reduces engines maintenance costs,
overhaul costs and pollution
APPLICATION
Calibration for ship’s temperature
Research and development laboratories
Testing and inspection department in production areas as standard equipment for service technicians
TECHNICAL SPECIFICATION
- SUBJECT
- TEMPERATURE RANGE 30 TO 650 °C
- RESOLUTION (DISPLAY)
- ACCURACY
- STABILITY
- HEATING TIME TO MAX
- COOLING TIME TO MIN
- THERMOSTAT TEST
- WELL DEPTH
- WELL DIAMETER
- POWER SUPPLY
- POWER CONSUMPSION
- OPERATING TEMPERATURE
- DIMENSION
- WEIGHT
- VALUE
- 40~650°C
- 0.1°C
- ±1.5°C
- ±0.5°C
- 40min
- 65min
- Yes
- 155mm
- 26mm
- 100~200VAC, 50~60Hz
- 1600W
- 0~40°C
- 115 x 280 x 220
- abt. 5.5kgs
