BALLAST TANK &
DRAFT LEVEL GAUGING SYSTEM
BAL-2000 (ELECTRO PNEUMATIC TYPE)
- GENERAL INFORMATION
- BALLAST TANK & DRAFT LEVEL GAUGING SYSTEM is designed to measure the level of ballast tanks, draft and fuel oil tanks of ships.
- This system uses the pneumatic type level sensor and is used for measuring various kinds of tanks.
FEATURE & ADVANTAGE
- Simple principle an structure
- East installation and maintenance
- Relatively inexpensive price
- No elevtrical equipment
-No Ex-proof equipment - Possible for digital
indicating by P/I converter
APPLICATION
Ballast tank remote reading
Draft remote reading
Fuel oil remote reading
OPERATION PRINCIPLE & SYSTEM COMPOSITION
BAL–2000 is composed of an air purge unit, a dual check valve, a flow
regulator, a 3-wau cock valve, a gauge saver, an analog indicator,
P/I
converter and a digital indicator for each tank.
The basic operating principle is same as PURE PNEUMATIC TYPE, but this system uses P/I converter and digital indicator additionally to indicate the level digital figure.
TECHNICAL SPECIFICATION
- SYSTEM TYPE
- MEASURING RANGE
- ACCURACY
- SIGNAL PIPE
- AMBIENT TEMPERATURE
- OPERATING AIR PRESSURE RATING
- ELECTRO PNEUMATIC TYPE
- 0~40m
- ±1.0% of F.S
- OD 8mm
- -30~70°C
- 4~7bar

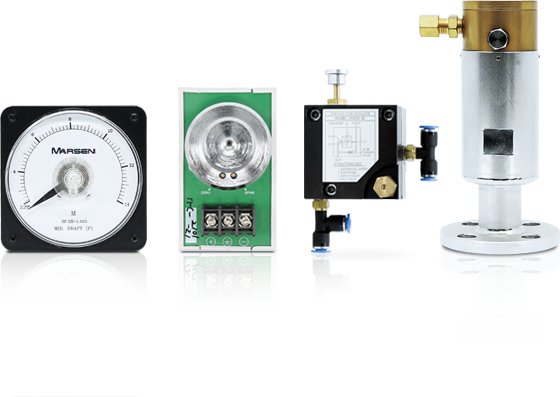

COMPONENTS / OUTLINE
