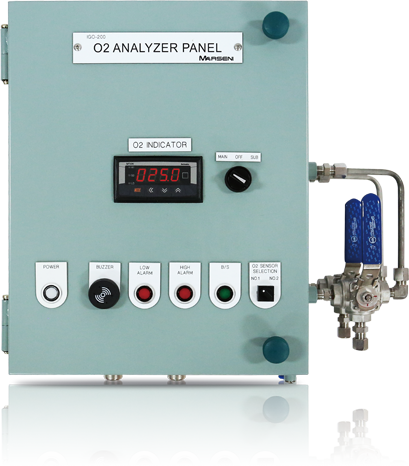

O2 ANALYZER
IGO-200
- GENERAL INFORMATION
- O2 analyzer measures the O2 content for BOILER’s safety operating and activates audible and visual alarm and sends signals to ECR.
- It can be used as a sub O2 analyzer for other boiler system. So Marsen supplies this system with the selection switch.
FEATURE & ADVANTAGE
- Boiler, explosive or potenially explosive area by O2 gas
- Inert gas system / Inert gas generator
OPERATION PRINCIPLE & SYSTEM COMPOSITION
IGO-200 is composed of a main controller with internal O2 sensor.
The internal O2 sensor measures O2 content and the controller activates high/low alarms.
Selection switch can be installed to be used with main analyzer as requests.
TECHNICAL SPECIFICATION
- SUBJECT
- O2 SENSOR RANGE
- MATERIAL
- MAIN POWER
- ALARM POINT
- OUTPUT SIGNAL
- VALUE
- 0~5 / 0~10 / 0~25%
- SS400
- Controller 110/220VAC, 60Hz
- Low & High alarm (Adjustable)
- 4~20mA (DC)
