GAS DETECTION SYSTEM
BGAS-2000
- GENERAL INFORMATION
- GAS DETECTION SYSTEM is designed for sampling and measuring the gas for a number of sampling points such as water ballast tanks and void spaces.
- This system is designed to sample the gas from each sampling point where the flammable and hydrogen sulphide gas content can be generated and deliver the gas to the analyzing unit what the flammable and hydrogen sulphide gas content can be measured.
- Therefore, this system can provide the alarms for the presence of flammable and hydrogen sulphide gas.
- This system is designed according to the requirements of IMO/SOLAS and the classification rules.
FEATURE & ADVANTAGE
">
Instrinsicallt safe type sample cabinet- Up to 48 sampling points
- Expandable in the field of plug-in solenoid
- Auto and manual purge cycles
- Auto shut down and flow failure alarm
- Multiple remote display
- Connected to ship's computer network for monitoring by other authoized computer on the network
APPLICATION
Sampling of the ballast tanks and void spaces
OPERATION PRINCIPLE & SYSTEM COMPOSITION

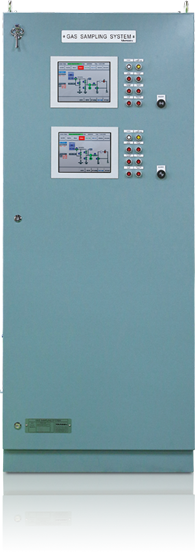

BGAS-2000 is composed of a number of sampling units and a control & analyzing unit that includes gas detectors, a pump and an indication monitor.
A gas sampling is done from each sampling point in sequence and the gas is transported to the gas detectors through the pipe.
Then gas analyzing is done in the control & analyzing unit.
It is possible to send information to the AMS by using communication protocol which allows for a real time flow of information with the current location being sampled and the gas content level.
TECHNICAL SPECIFICATION
- SUBJECT
- POWER SUPPLY
- PUMP CAPACITY
- GAS MEASUREMENT
- SAMPLING POINTS
- SUCTION PIPES
- OUTPUTS
- INSTALLATION ACCESSORIES
- OPTION
- VALUE
- 110~220VAC (50~60Hz), 2A
- 15lit/min
- HC, O2, H2S and etc. (up to 4 pieces)
- Maximum 48 with or without counter pressure
- OD 8 or 10, ID approx. 6
- 6 relays with 2 switching 5A contacts each standard or custom defined
- Flame arrester, shut off valves, filters, cones and etc.
- Printer (RS232), modbus (RS485), Pre-suction pump 15lit/min, 1~4 Repeater units, pump redundancy, other special arrangements
COMPONENTS / OUTLINE
